Lamborghini Countach - Walter Wolf Countach and 25th Anniversary Countach

Dream Fantasy Cars-Walter Wolf Countach
Walter Wolf Countach
Lamborghini Countach
  • Manufacturer Lamborghini
  • Production 1974–1990 (2,042 produced)
  • Assembly Sant'Agata Bolognese, Italy.
  • Price range $169,500
Designer(s) Marcello Gandini at Bertone.
Overview
  • Predecessor Lamborghini Miura
  • Successor Lamborghini Diablo
  • Class Sports car
  • Body style 2-door coupĆ©
  • Layout Rear mid-engine, rear-wheel drive
  • Engine V12 engine, LP400, LP400S: 4.0 L (3929 cc),LP500S: 4.8 L (4754 cc),5000QV, 25th Anniversary: 5.2 L (5167 cc).
  • Transmission 5-speed manual
  • Wheelbase 96.46 in (2,450 mm)
  • Length 162.99 in (4,140 mm)
  • Height 42.13 in (1,070 mm).
Dream Fantasy Cars-Lamborghini Countach
Lamborghini Countach

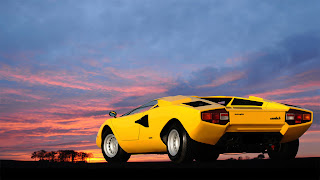

The Lamborghini Countach is a mid-engined supercar that was produced by Italian automaker Lamborghini from 1974 to 1990. Its design both pioneered and popularized the wedge-shaped, sharply angled look popular in many high performance sports cars.
In 2004, American car magazine Sports Car International named the car number three on the list of Top Sports Cars of the 1970s, and it was listed as number ten on their list of Top Sports Cars of the 1980s.

Styling
Dream Fantasy Cars-Lamborghini Countach
Lamborghini Countach
The Countach was styled by Marcello Gandini of the Bertone design studio, the same designer and studio that designed the Miura.
Lamborghini Countach have scissor doors, hinged at the front with horizontal hinges, so that the doors lifted up and tilted forwards. The main reason is the car's tubular spaceframe chassis results in very high and wide door sills. It was also partly for style, and partly because the width of the car made conventional doors impossible to use in an even slightly confined space. Care needed to be taken, though, in opening the doors with a low roof overhead.
Dream Fantasy Cars-Lamborghini Countach
Lamborghini Countach
The car's poor rear visibility and wide sills led to drivers adopting a method of reversing the car for parking by opening the door, sitting on the sill, and reversing while looking over the back of the car from outside.
The pure style of the prototype was progressively altered by the evolution of the car to improve its performance, handling, tractability, and ability to meet mandated requirements. This began with the first production model, which included several vents which were found to be necessary to cool the engine adequately. These included the iconic NACA duct on the door and rear fender of each side of the car. The car design changes ended with a large engine vent directly behind the driver, reducing the rear view. Later additions, including fender flares, spoilers, carburetor covers, and bumpers, progressively changed the aesthetic values of the car.
The Countach's styling and visual impression caused it to become an icon of great design to almost everyone except automotive engineers. The superior performance characteristics of later Lamborghini models (such as the Diablo, or the MurciƩlago) appealed to performance car drivers and engineers, but they never had the originality or outrageousness that gave the Countach its distinction. The different impressions left by the various Lamborghini models have generated numerous debates and disagreements over what constitutes "classic" or "great" automotive design (elegant looks and style, versus technical and engineering superiority).

Dream Fantasy Cars-Lamborghini Countach
Lamborghini Countach
Engine
The rear wheels were driven by a traditional Lamborghini V12 engine mounted longitudinally with a mid-engined configuration. For better weight distribution, the engine is pointed "backwards"; the output shaft is at the front, and the gearbox is in front of the engine, the driveshaft running back through the engine's sump to a differential at the rear. Although originally planned as a 5 liter powerplant, the first production cars used the Lamborghini Miura's 4 liter engine. Later advances increased the displacement
Dream Fantasy Cars-Lamborghini Countach
Lamborghini Countach engine
to 4.8 liters and then (in the "Quattrovalvole" model) 5.2 L with four valves per cylinder.
All Lamborghini Countaches were equipped with six Weber carburetors until the arrival of the 5000QV model, at which time the car became available in America, and used Bosch K-Jetronic fuel injection. The European models use the carburetors (producing more power than fuel injected cars) until the arrival of the Lamborghini Diablo, which replaced the Countach.
Dream Fantasy Cars-Prototype LP 500
Prototype LP 500
Prototype LP 500
A single prototype was built, the LP 500 (the 500 standing for the 5 L displacement of the engine which was
Dream Fantasy Cars-Prototype LP 500
Prototype LP 500
intended to be used. Painted bright sunflower yellow, the car was a stunner at the Geneva Motor Show in 1971. Sporting Gandini's original design concepts, the car's design needed extensive modification for production. In particular, the small air intake ducts on the car's rear shoulders proved insufficient to cool the engine, and large "air box" scoops were added in that position. Large NACA ducts were added on the sides to give additional air. The experimental car was also constructed of aluminum honeycomb sheeting among other things, which was dropped for production.
The car did not survive; it was sacrificed in a crash test at MIRA facility to gain European type approval, even though its construction method was utterly unlike production vehicles.
Dream Fantasy Cars-LP 400
LP 400
LP 400
The Countach entered production as the LP 400 with a 4.0-litre (3929 cc) 375 PS engine. The first
Dream Fantasy Cars-LP 400
LP 400
production Countach was delivered to an Australian in 1974. Externally, little had altered from the final form of the prototype except at the rear, where conventional lights replaced the futuristic light clusters of the prototype. The styling had become rather more aggressive than Gandini's original conception, with the required large air scoops and vents to keep the car from overheating, but the overall shape was still very sleek. The original LP 400 rode on the quite narrow tires of the time, but their narrowness and the slick styling meant that this version had the lowest drag coefficient of any Countach model and possibly the highest top speed. The emblems at the rear simply read "lamborghini" and "Countach", with no engine displacement or valve arrangement markings as is found on later cars. By the end of 1977 the company had produced 158 Countach LP 400s.

LP 400S
Dream Fantasy Cars-LP 400S
LP 400S
In 1978, a new LP 400S model was introduced. Though the engine was slightly downgraded from the LP 400 model (355 PS), the most radical changes were in the exterior, where the tires were replaced with much wider Pirelli P7 units, and fiberglass wheel arch extensions were added, giving the car the fundamental look it kept until the end of its production run. An optional V-shaped spoiler was available over the rear deck, which, while improving high-speed stability, reduced the top speed by at least 10 MPH. The handling of the LP 400S was improved by the wider tires which made the car more stable in cornering. Aesthetically, some prefer the slick lines of the original while others prefer the more aggressive lines of the later models, beginning with the LP 400S. The standard emblems ("Lamborghini" and "Countach") were kept at the rear, but an angular "S" emblem was added after the "Countach" on the right side.
There are three distinct Countach LP 400S Series:
  • Series One: The first 50 cars delivered with Campagnolo "Bravo" wheels in 1978 and 1979. The very early 1978 cars had the original LP 400 steering wheel. Small Stewart Warner gauges, 45 mm carburettors and a lowered suspension (lowbody) setting is a trademark feature of this celebrated first series. Halfway through 1979's production, bigger gauges were employed. 50 cars were built and the last one is noted to be 1121100*
  • Series Two: These cars are recognized by their smooth finish dished/concave wheels, and still retain the lowbody setting. 105 cars were built and the last one is noted to be 1121310*.
  • Series Three: It is claimed that from chassis number 1121312 onwards, the cockpit space available was raised by 3 cm. These cars are recognized by their raised suspension setting. 82 cars were built, and the last one is noted to be 1121468*.
Dream Fantasy Cars-LP 500S
LP 500S
Dream Fantasy Cars-LP 500S
LP 500S
LP 500S
Dream Fantasy Cars-LP 500S
LP 500S
1982 saw another improvement, this time giving a bigger, more powerful 4.8 litre engine. The bodywork was unaltered. This version of the car is sometimes called the LP 5000S, which may cause confusion with the later 5000QV (next section). 323 cars were built.




Dream Fantasy Cars-5000QV
5000QV
5000QV
In 1985 the engine was improved again, bored and stroked to 5.2 litres (5,167 cc) and given four valves per
cylinder. The carburetors were moved from the sides to the top of the engine for better breathing unfortunately this created a hump on the engine deck, reducing the already poor rear visibility to almost nothing. Some body panels were also replaced by Kevlar. In later versions of the engine, the carburettors were replaced with fuel-injection.
Dream Fantasy Cars-5000QV
5000QV
For the first time, a US specification model was produced by the factory, with styling changes to allow bumpers to meet US federal standards. (Many had those bumpers removed immediately as the bulky looking addition to the car was said to ruin the otherwise smooth lines of the body.) Although this change was the most notable on the exterior, the most prominent change under the hood was the use of Bosch K-Jetronic fuel injection providing 420 PS (309 kW; 414 hp), rather than the six Weber carburettors providing 455 bhp (339 kW; 461 PS) used in the Euro-spec model. The 1985 US model had a base price close to $100,000. Only two optional extras were available: a $5,500 aerodynamic spoiler and a $7,500 sound system. As for other markets, 1987 and 1988 model Quattrovalvoles received straked sideskirts, 610 cars were built.
Dream Fantasy Cars-25th Anniversary Countach
25th Anniversary Countach
25th Anniversary Countach
  • Production 1988-1990, 658 produced
  • Engine 5.2 L (5167 cc) V12
  • Wheelbase 2,500 mm (98.4 in)
  • Length 4,140 mm (163.0 in)
  • Width 2,000 mm (78.7 in)
  • Height 1,070 mm (42.1 in)
  • Curb weight 1,490 kg (3,285 lb).
Designer(s) Horacio Pagani.
Dream Fantasy Cars-25th Anniversary Countach
25th Anniversary Countach
In 1988, the 25th Anniversary Countach was mechanically very similar to the 5000QV but sported much changed styling. The rear "air boxes" were restyled and enlarged, while the vents behind them were changed so that they ran front to back instead of side to side. In addition, both with air intakes were fitted and the taillights were restyled to be narrower, with body-colored panels replacing the upper and lower parts of the previous large taillights. The styling changes were unpopular with many, particularly since the intakes had strakes in them that appeared to mimic those on the Ferrari Testarossa, but they improved the engine's cooling, a problem the Countach had always struggled with. It also featured 345/35R15 tires; the widest tires available on a production car at the time. The Anniversary was produced through 1990 when it was replaced by the Lamborghini Diablo.
Dream Fantasy Cars-Walter Wolf Countach
Walter Wolf Countach
Walter Wolf Countach
Dream Fantasy Cars-Walter Wolf Countach
Walter Wolf Countach
In 1975, Walter Wolf, a wealthy Canadian businessman and owner of the Wolf F1 Racing team in the 1970s, purchased an LP 400; however, he was not satisfied with the LP 400's engine and asked Dallara, the chief engineer of Lamborghini at that time and the founder of the Italian F1 racing team Scuderia Italia in the mid-1980s, to create a special high-power version of the Countach. It was the "code NO 1120148" Walter Wolf special with the original "5" engine from the Countach prototype which produced 447 hp / 7900 rpm and reached a supposed maximum speed of 315 km/h (195.8 mph) or 323.6 km/h (201.1 mph). This model also featured the upgraded wheels, Pirelli P7 tires, large fender flares, and front and rear spoilers of the LP 400S model. It was painted in red, with black fender flares, and was designated "LP 500S" like the standard Countach model from the 1980s, and was the stepping stone that led to this later production model. This first Walter Wolf car is currently located in Japan. Two other Wolf Countaches were produced, one painted blue, NO 1120202 (currently in Germany) and one navy blue, NO 1121210. This machine was owned by Mr. Wolf for a long time, but was eventually sold.
